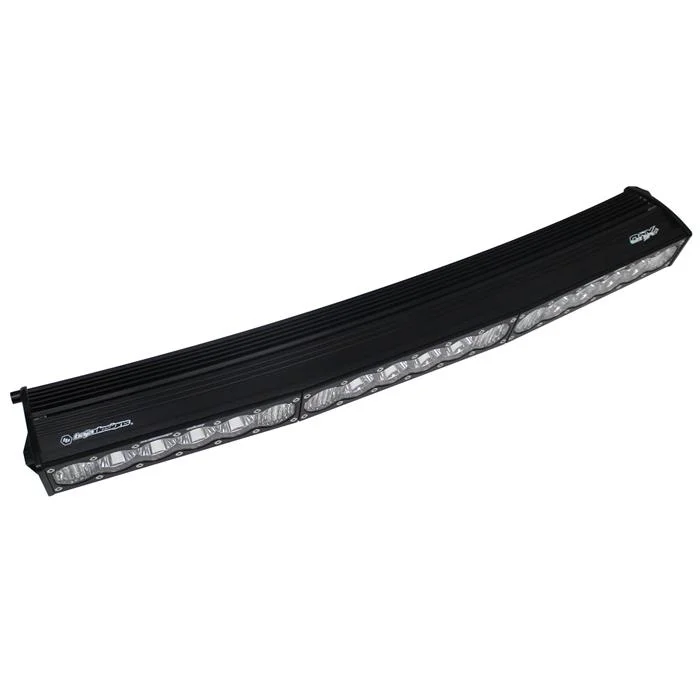

The NEW OnX6™ Arc Series is the perfect combination of performance and aesthetics. Beautifully arched to fit the contour of your bumper or windshield, the Arc Series redefines the capabilities of the standard/traditional LED light bar. An industry first 30 Day Satisfaction Guarantee & Limited Lifetime Warranty is included for the ultimate in purchase protection.

Baja Designs Features:
Satisfactions Guarantee – 30 Day Money Back
Guarantee
Limited Lifetime Warranty – Complete Purchase Protection
uService® – Replaceable Lenses And Optics
ClearView® – All The Light, Right Where You Need It.
MoistureBlock™ – Waterproof, Rain Proof, Submersible
CopperDrive – Only LED Driven At 100%
5000K Daylight – Less Driver Fatigue, Natural ColorSpecifications:
Lumens: 19,350-32,250 Utilizing 30 Cree XM-L2 LEDs
Wattage/Amps: 189W / 15.75A-315W / 26.25A
Dimensions: 30"-50" x 4.29" x 2.69"
Weight: 11.45-18.65 lbs
LED Life Expectancy: 49,930 Hours
Front Lens: Hard Coated Polycarbonate
Housing: Aircraft Grade Aluminum w/Mil-Spec Hard Anodize
Bezel: Billet Machined Aluminum
Hardware & Bracket Material: Stainless Steel
Exceeds MIL-STD810G (Mil-Spec Testing)
Built-In Overvoltage Protection
IP69K (Waterproof up to 9ft & Pressure Washable)
IK10 Compliant (Mechanical Impact Testing)

Includes:

• OnX6™  Arc Series LED Light Bar
• Mounting Brackets


Patterns:

Driving/Combo: Maximum trail coverage in a single light.  The Driving/Combo pattern is equipped with both Wide Driving (42°) and the spot (6°) optics to provide you with a smooth blend of light for both near field applications and distance (Lighting Zone 3)

Wide Driving:  BD was the first to develop a pattern specifically for cornering, dust and/or fog conditions. The Wide Driving pattern offers a 42° flattened horizontal beam for the ultimate in comfort lighting. (Lighting Zones 1 & 2) (Also available in amber)

High Speed Spot: A longer and narrower 6° beam focus for illumination further down the trail or road.  The Spot pattern is designed to be used in conjunction with additional Wide Driving and/or Driving/Combo beam lights. (Lighting Zone 4 & 5)
