Mazzulla Ford Raptor Long Travel 2WD Kit
Mazzulla Ford Raptor Long Travel 2WD Kit
Ditch your 4wd that never seems to work and unleash your raptor with 19" of whoop crushing travel
WHAT'S IN THE BOX

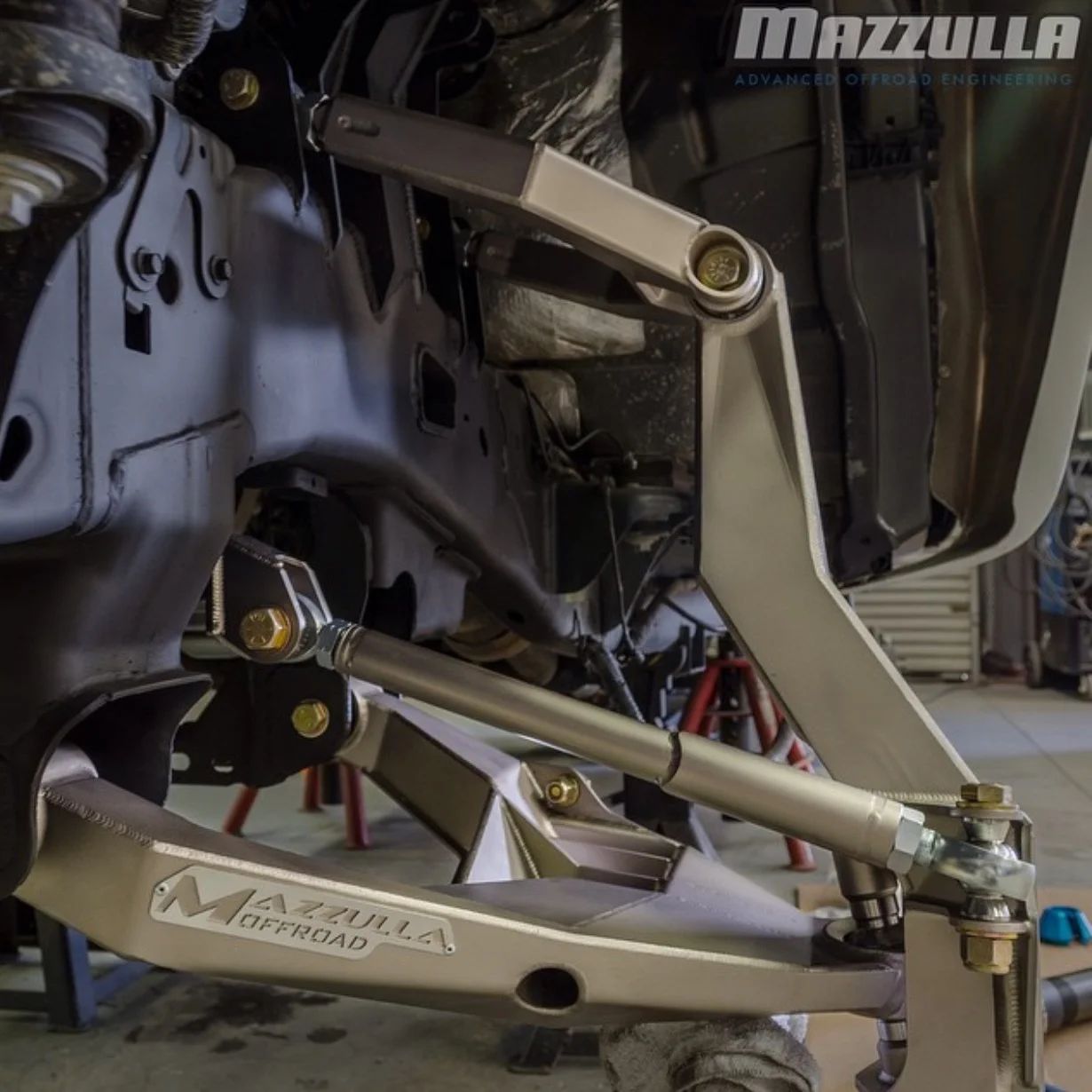

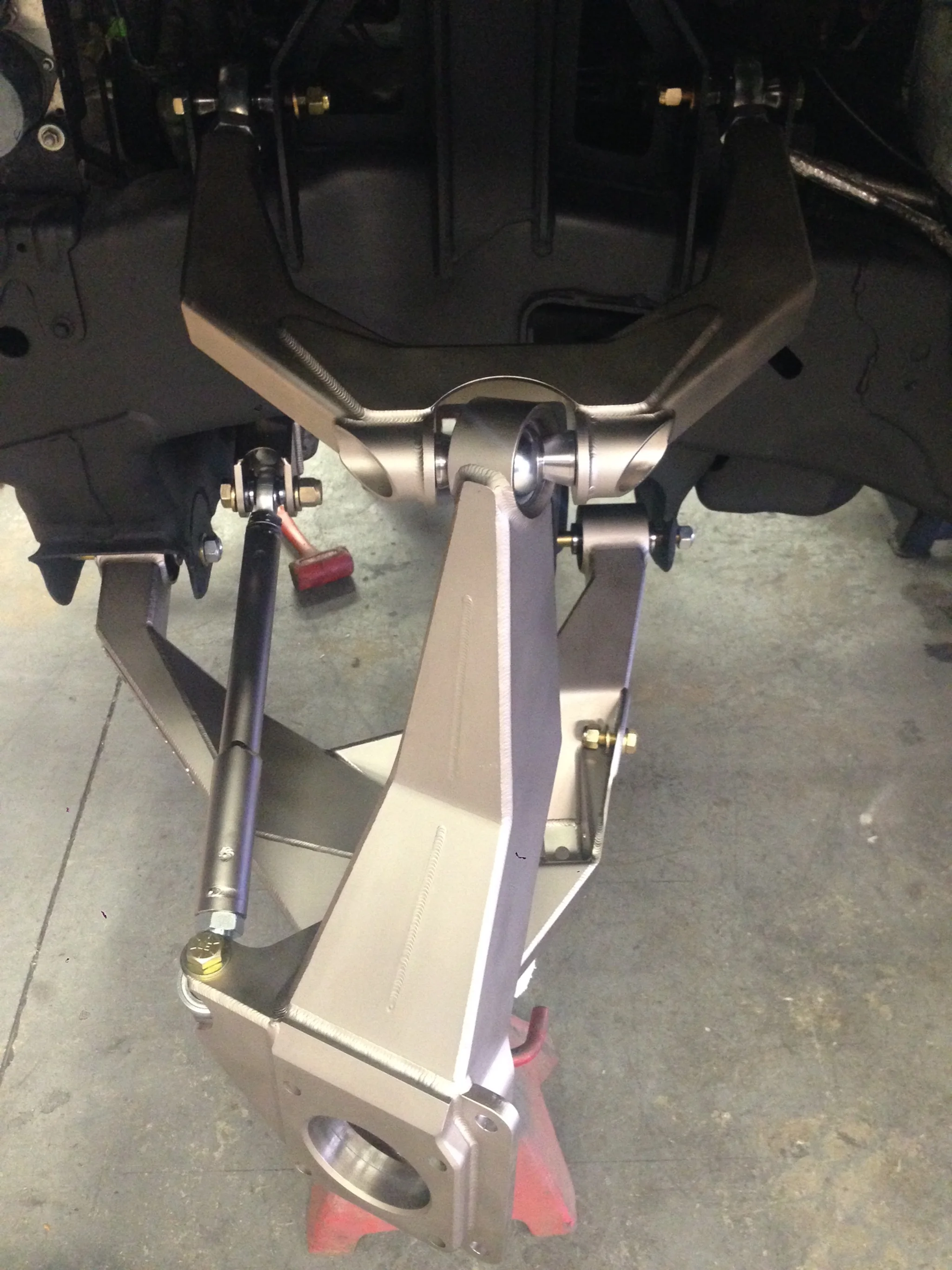

● Upper Control Arms - 7/8" heim chassis pivot
● Lower Control Arms - 1" uniball on chassis pivot and 1.5" uniball on spindle pivot

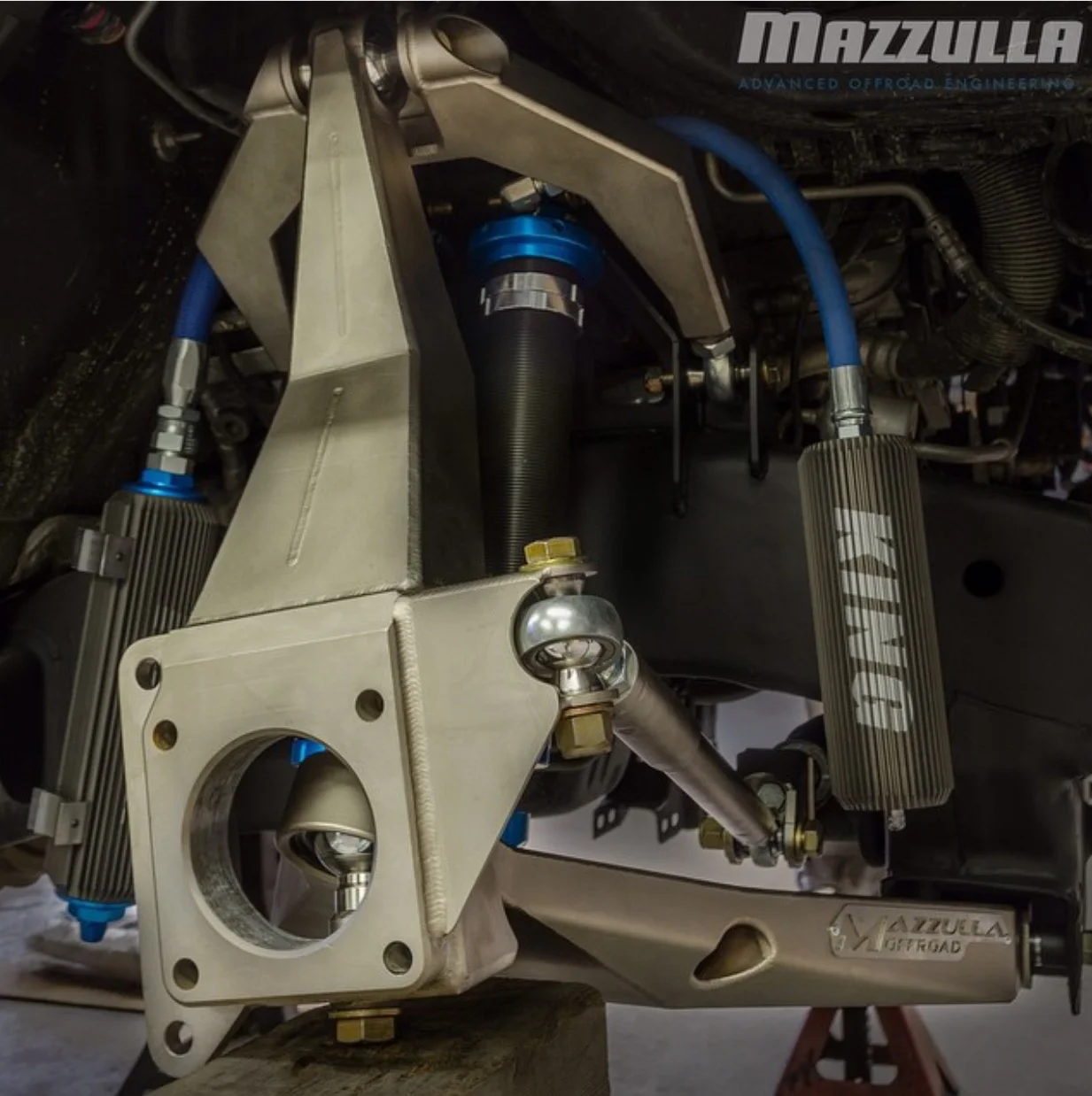

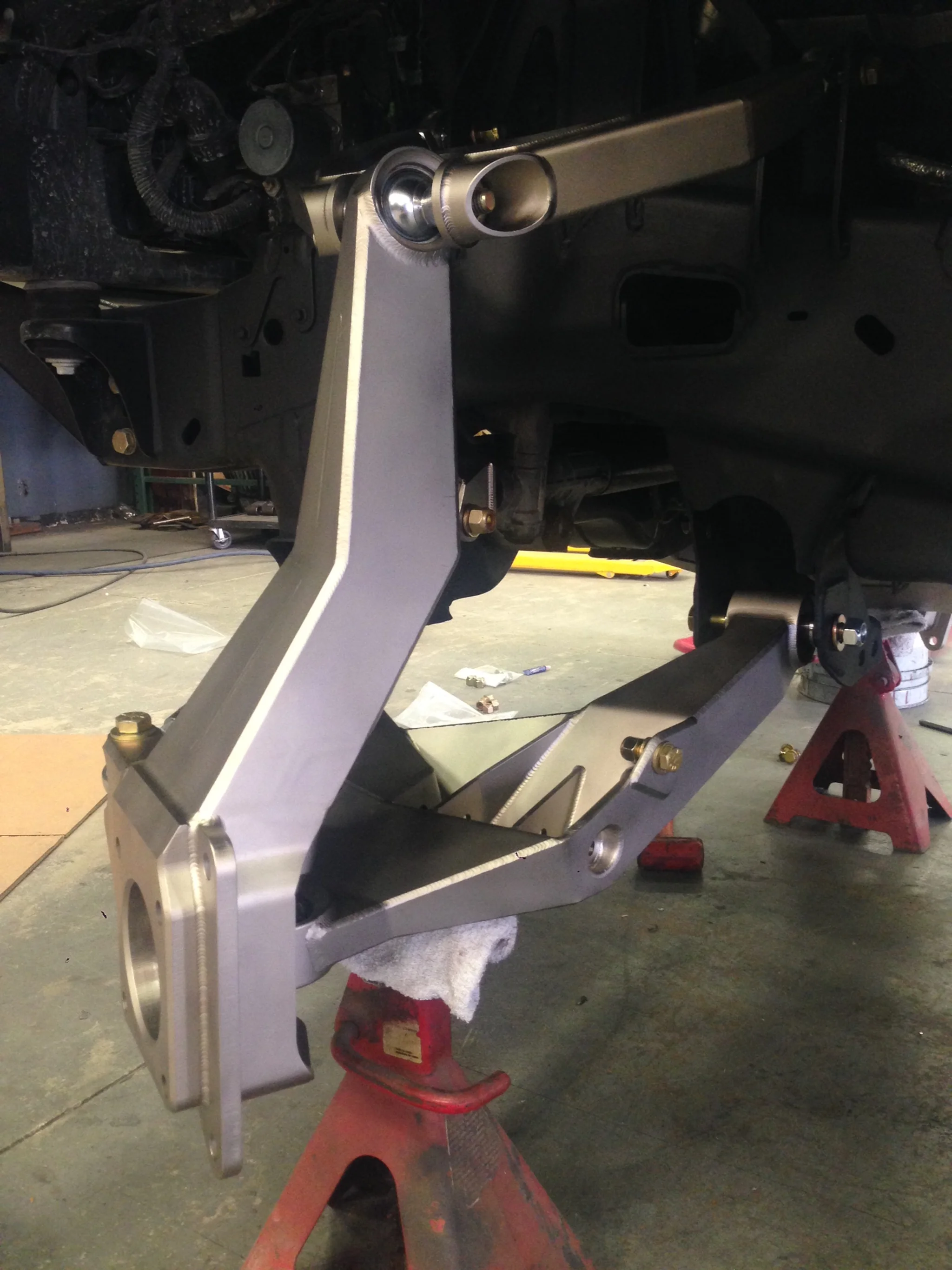

● Spindle Uprights - 1" vertical uniball for UCA and 1.5" horizontal uniball for LCA,
● Steering - Billet aluminum tie rods and chromoly rack clevis - 5/8" & 7/8” heim pivots
● Brake lines - Steel braided and Teflon coated w/rubber boots● Hardware - Grade 8 bolts, washers and lock nuts
● Limit straps - 2 - 2" 4 ply high strength straps
● Shock mount/UCA mount
***3-4 week lead time for fabrication and delivery
● CAD designed and manufactured entirely in the USA

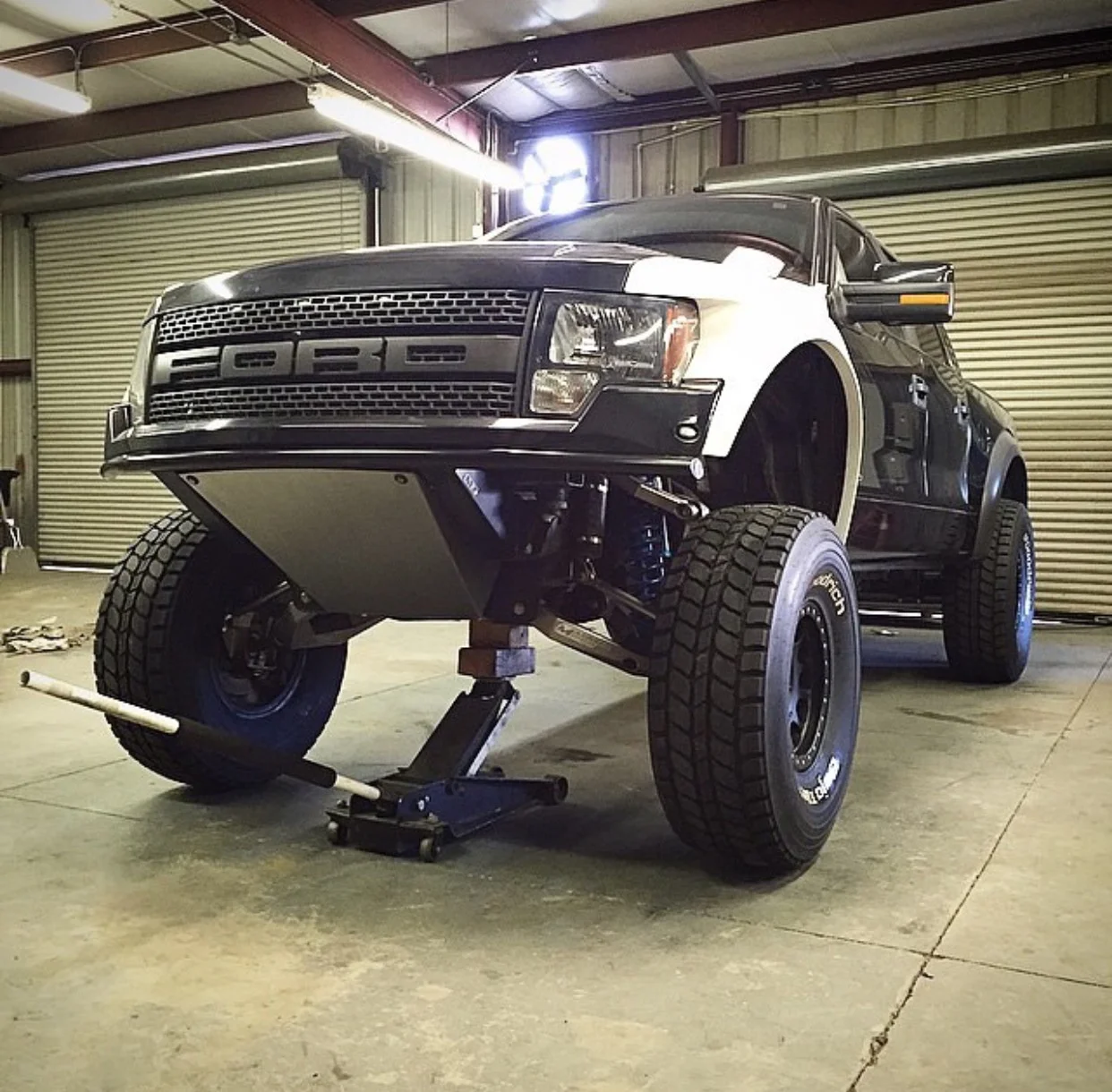

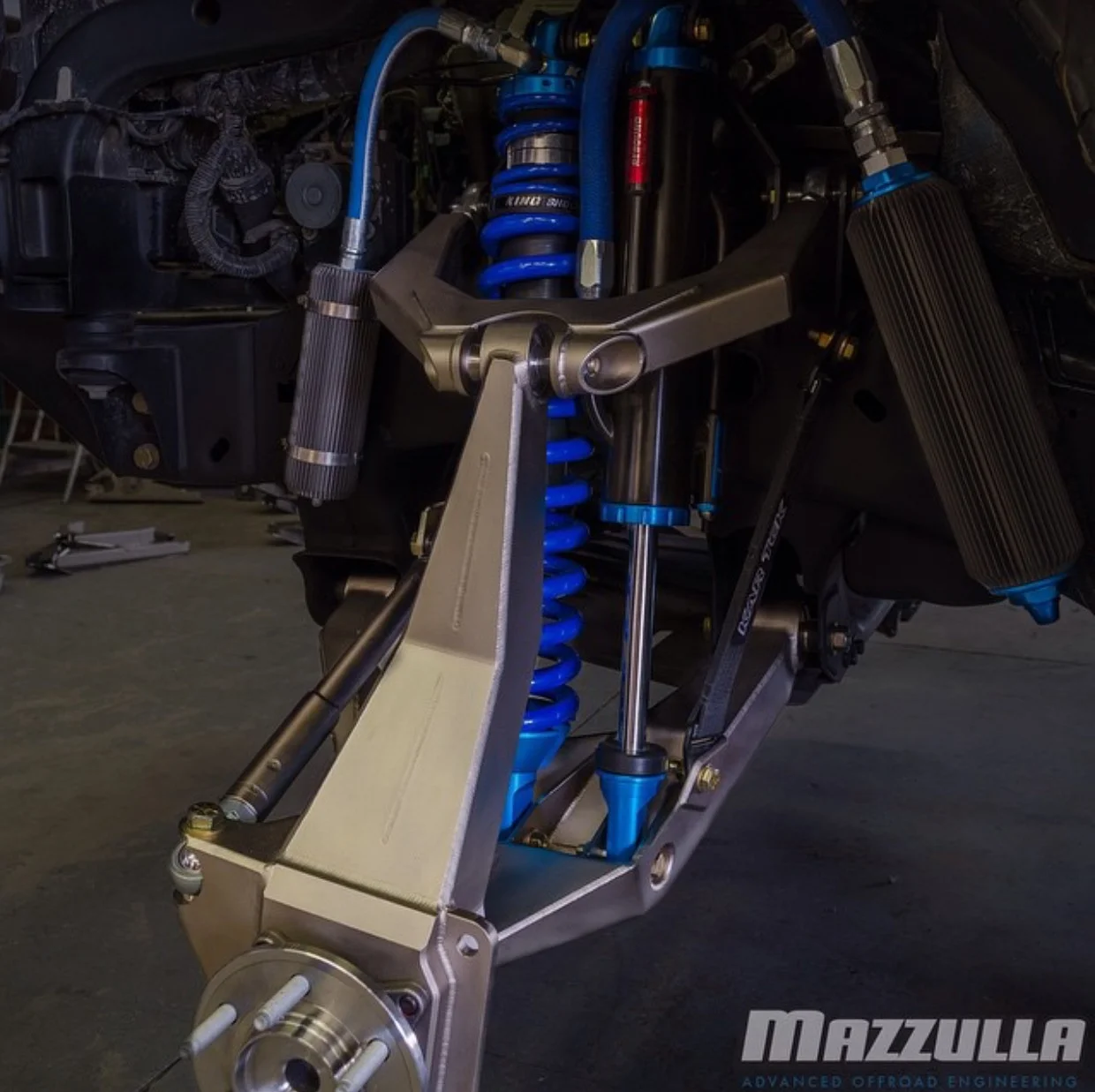

● 19" of wheel travel● Utilizes 2.5" x 10" Coilovers
● Supports up to a 3.0" x 10" 3-Tube bypass secondary shock
● Allows for optional 2.0" hydraulic air bump stops
● Superior boxed construction
Chromoly or Mild Steel

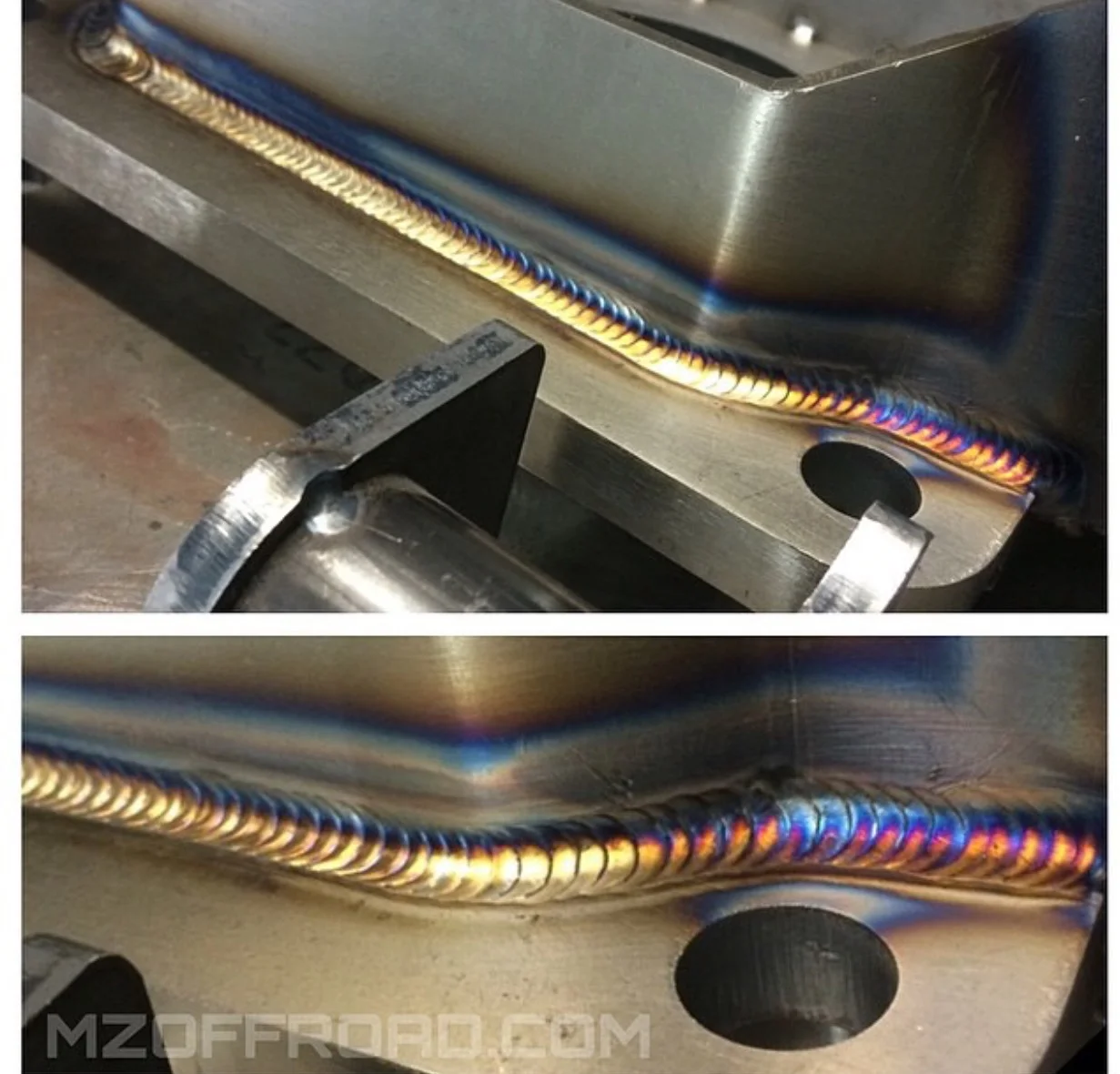

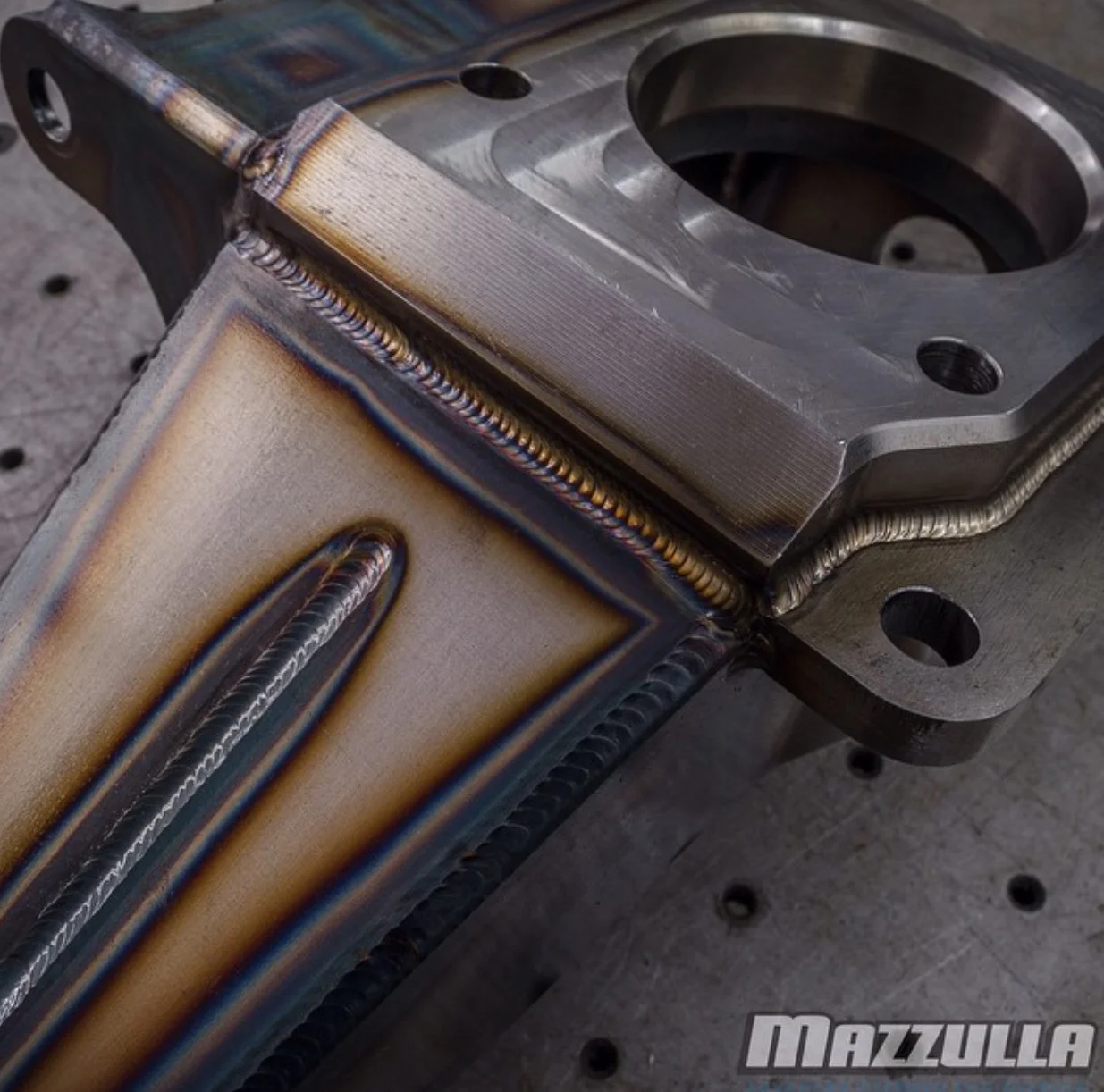

● Fully MIG or TIG welded
● FK teflon lined 1.5" uniballs
● Aurora 7/8" heim upper chassis pivots
● Machined Delrin lower chassis pivot bushings
● Grade 8 zinc plated bolts, washers, and lock nuts
● 17-4 heat treated stainless steel misalignment spacers
● Billet aluminum tie rods with 5/8" & 7/8” heim pivots & clevis
● Shock mount & UCA mount
● Steel braided Teflon coated brake lines w/rubber boots
● Zerk fittings for convenient bushing maintenance
● 2" 4 ply high strength limit straps
● 2 stage powder coat finish with clear coat
Fitment
● This part fits Ford Raptors from 2010 to 2014
Notes
● Engine cage and installation are not included and should be fabricated and welded by a professional
